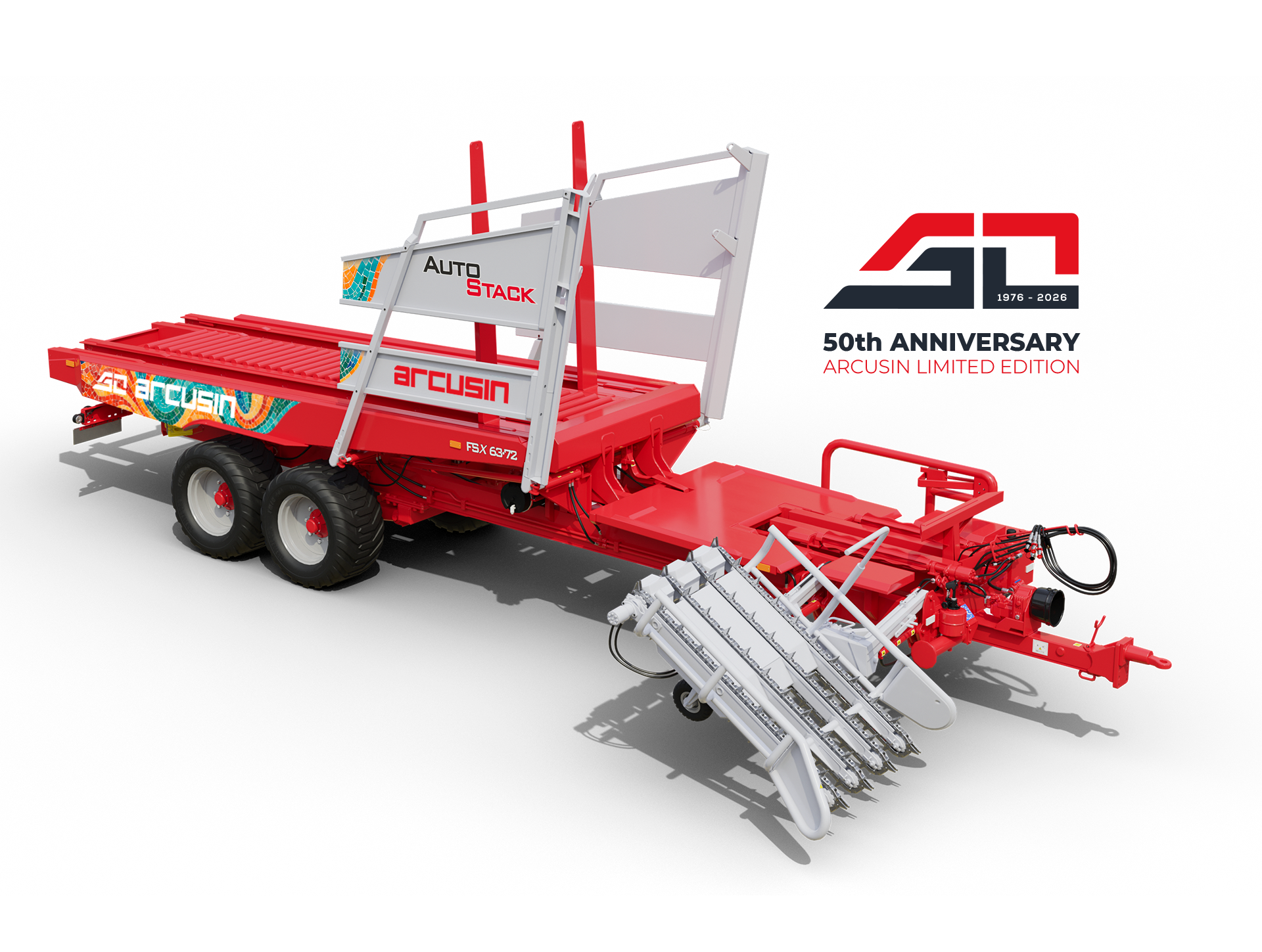

AutoStack FSX

EASY, SAFE & STABLE DISCHARGES IN ONE SINGLE MOVEMENT

What’s unique about this bale stacker?

The AutoStack FSX is our largest stacker model and has been designed to fit the needs of farmers and contractors that want to maximize the efficiency of their bale logistics.

With a completely automatic working cycle, the collection and stacking of large and heavy bales can now be carried out by one single operator in a safe and consistent manner, saving hours of time and minimizing labor costs.

High-speed & automatic working cycle

Monitored from display in the tractor cabin

Performance 100 to 120 bales/hour

Dependent on baled product & field conditions

Ideal for intensive work on large farms

Compatible with all bale sizes

Floating & single-turn pick-up

Does not push or drag bales in the field

Independent hydraulic suspension

Total adaptation to the terrain, no risk of overturning

Extendable loading platform

Possibility to increase the loading capacity thanks to the extensible platform

Perfect, safe & compact stacking

Unloading system with intelligent tines to assure full stability

One man operation

No previous experience required

ARCUSIN AutoStack bale stackers

Both stacker models are built with top electronics and hydraulics,

offering farmers very reliable machines that will operate in all sort of terrains and conditions.

The biggest difference between the two is their loading capacity.

The FSX being the larger model and recommended for contractors or big explotations that need to move large amounts of bales.

The XP is ideal for farmers with smaller fields that are used to work in humid conditions.

Key features

Pick-up Arm

The collection system is patented and unique in the market, loads all types of bales and sizes without damaging the product. The chains are automatically activated once the bale is detected and the loading process is carried out with one single turn.

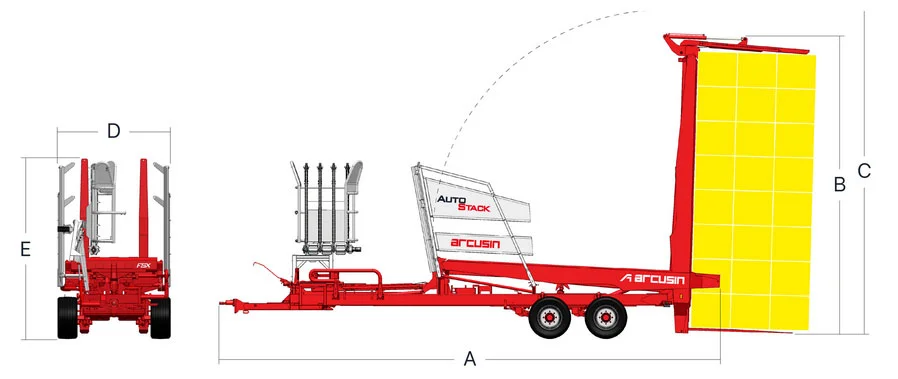

Dimensions & Capacity

No need to adapt the machine, ideal for contractors

Tare

M.M.A

9.100 KG

16.000 KG

A

B

C

D

E

10.980 mm

6.300 to 7.200 mm

7.000 to 8.000 mm

2.450 mm

3.600 to 3.890 mm

Loading capacity according to bale size

130 x 120 cm
51.2 x 47.2 in
90 x 120 cm
35.4 x 47.2 in
80 x 120 cm
31.5 x 47.2 in
70 x 120 cm
27.5 x 47.2 in
90 x 80 cm
35.4 x 31.5 in
80 x 80 cm
31.5 x 31.5 in
70 x 80 cm
27.5 x 31.5 in
60 x 90 cm
23.6 x 35.4 in
50 x 80 cm
19.7 x 31.5 in
47 x 80 cm
18.5 x 31.5 in
100 x 120 cm
39.4 x 47.2 in
10 – 12
14 – 16
16 – 18
18 – 20
21 – 24
24 – 27
27 – 30
30 – 36
36 – 42
39 – 45
12 – 14 *
*Bundles

130 x 120 cm
51.2 x 47.2 in

10 - 12

90 x 120 cm
35.4 x 47.2 in

14 - 16

80 x 120 cm
31.5 x 47.2 in

16 - 18

70 x 120 cm
27.5 x 47.2 in

18 - 20

90 x 80 cm
35.4 x 31.5 in

21 - 24

80 x 80 cm
31.5 x 31.5 in

24-27

70 x 80 cm
27.5 x 31.5 in

27 - 30

60 x 90 cm
23.6 x 35.4 in

30 - 36

50 x 80 cm
19.7 x 31.5 in

36 - 42

47 x 80 cm
18.5 x 31.5 in

39 - 45

100 x 120 cm
39.4 x 47.2 in

12 - 14 *
*Bundles
